Vinyl Ester Resins Ultimate Corrosion Resistance For Demanding Industrial Environments
Product Attributes
| Attribute |
Value |
| Appearance |
Clear liquid |
| Curing time |
Fast curing |
| Application |
Coating, adhesive, casting |
| Solvent resistance |
High solvent resistance |
| UV resistance |
Good UV resistance |
| Chemical resistance |
Excellent chemical resistance |
Product Description
Vinyl ester resins are thermosetting polymers synthesized from epoxy resins (e.g., bisphenol A or novolac epoxy) and methacrylic acid, combining epoxy's mechanical strength with unsaturated polyester's processability. Engineered for extreme service conditions, our formulations deliver:
- Superior Chemical Resistance - 35-50% higher alkali resistance than standard polyesters, withstands 98% H₂SO₄/40% NaOH
- High-Temperature Endurance - Standard HDT 105-110°C; novolac-modified grades up to 150°C for FGD applications
- Rapid Processing - 8-40 min gel time @25°C, ideal for automated production lines
- Zero Heavy Metals - Compliant with FDA 21CFR 175.300 (Pb/Cd/As <5ppm)
- Low Viscosity (300-500mPa*s) - Perfect fiber wetting for defect-free laminates
Five Core Application Sectors Driving $2.6B Market Growth (2024-2034)
Energy & Power
Flue Gas Desulfurization (FGD) Scrubbers
Novolac vinyl ester linings
Resists 150°C wet acidic gases
Chemical Processing
Acid Storage Tanks/Piping
Bisphenol A resin + glass flake coatings
Impervious to oxidizers/solvents
Transportation
Ship Hulls/Wind Turbine Blades
Flexible vinyl ester laminates
Fatigue strength ↑200%, elongation >5%
Electronics
Transformer Potting/PCB Substrates
Brominated flame-retardant grades
LOI 31% (UL94 V-0 certified)
Infrastructure
Wastewater Tanks/Flooring
Bi/Zn accelerator + quartz reinforcement
Hydrostatic resistance ≥1.2 MPa
Selection Protocol:
- Extreme Acid/Heat → Novolac epoxy vinyl ester (HDT ≥135°C)
- Food Contact → Bisphenol A + FDA compliance (migration <1ppm)
- Dynamic Loads → Polyurethane-modified resin (impact strength >22 kJ/m²)
Technical Specifications (ISO/GB Compliance)
| Parameter |
Bisphenol A |
Novolac Epoxy |
Flame Retardant |
Test Standard |
| Viscosity @25 °C (mPa*s) |
300-500 |
400-600 |
350-450 |
GB/T 7193 |
| Tensile Strength |
75-88 MPa |
80-95 MPa |
85-100 MPa |
ISO 527 |
| HDT |
105-110°C |
130-150°C |
100-105°C |
ASTM D648 |
| Gel Time @25 °C |
8-14 min |
12-18 min |
10-16 min |
GB/T 7193 |
| Oxygen Index (LOI) |
21% |
23% |
31% |
ASTM D2863 |
| Alkali Resistance (40% NaOH) |
No change (30d) |
No change (30d) |
Slight swelling |
ISO 175 |
Notes: Gel time tested with 100g resin + 1.0g Co accelerator + 1.5g MEKP; Novolac HDT validated in Three Gorges FGD systems (8-year service)

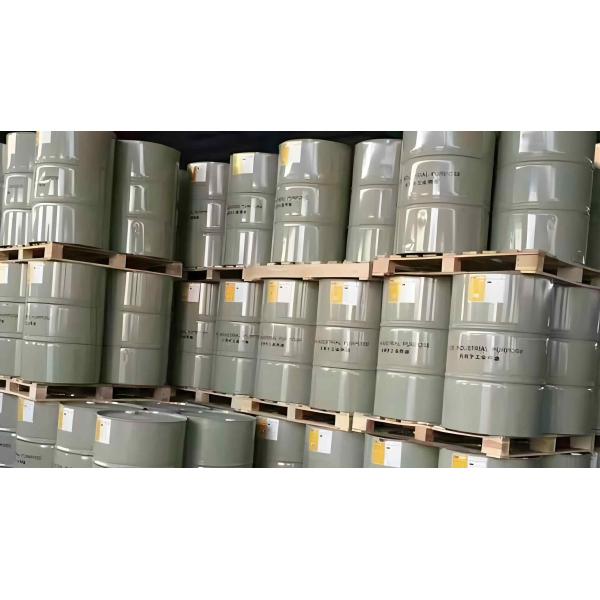

-Spec Packaging & Storage
Triple-Barrier Protection System
| Component |
Technical Specification |
Certification |
| Primary Container |
UV-blocking HDPE drum (≥99% opacity) |
ISO 15750 |
| Moisture Barrier |
Alu-foil laminate (<0.1g/m² WVTR) |
MIL-STD-2073 |
| Shipping Crate |
Honeycomb corrugated box (12kN crush resist) |
ISTA 3E |
Smart Tracking
- Color Coding: Bisphenol A (Blue █) │ Novolac (Red █) │ Flame Retardant (Yellow █)
- NFC Digital ID: Tap for real-time SDS & batch traceability
AIoT Warehouse Management Protocol
| Parameter |
Control Range |
Monitoring Tech |
Emergency Response |
| Temperature |
5-25°C |
PT1000 sensors (±0.2°C) |
>28°C activates liquid N₂ cooling |
| Humidity |
≤60% RH |
MEMS capacitive hygrometers |
>70% RH triggers dehumidifier |
| Light Exposure |
0-50 Lux |
Photodiode array |
>100 Lux deploys blackout curtains |
| Stack Integrity |
Vertical ≤2 tiers |
6-axis tilt/pressure sensors |
>5° tilt sounds alarms |
Critical Protocols:
- ISOLATE from peroxides (>5m separation per UN 3082 Class 9)
- COPPER TOOLS ONLY for drum handling (anti-sparking)
Technical Validation & Global Certifications
- Marine Performance: DNV-GL certified for hull laminates (saltwater immersion >10yrs)
- Extreme Environment: Novolac grade endures 200°C vapor phase >500hrs
- Eco-Compliance: REACH Annex XVII & RoHS 3 full compliance
- Infrastructure Proven: Applied in Three Gorges Power Plant FGD scrubbers
